Building a Li-Fi Text Communication System

In an era where the radio frequency spectrum is becoming increasingly congested, Li-Fi emerges as an innovative solution for wireless communication. This project demonstrates a practical implementation of Li-Fi technology, enabling text communication between two computers using visible light as the transmission medium.

What is Li-Fi?

Li-Fi (Light Fidelity) is a wireless communication technology that utilizes light waves to transmit data. Unlike traditional Wi-Fi that uses radio waves, Li-Fi leverages visible light, ultraviolet, and infrared spectrums for data transmission. The technology works by rapidly modulating the intensity of LED lights - changes so quick that they're imperceptible to the human eye.

System Architecture

The system consists of two main components:

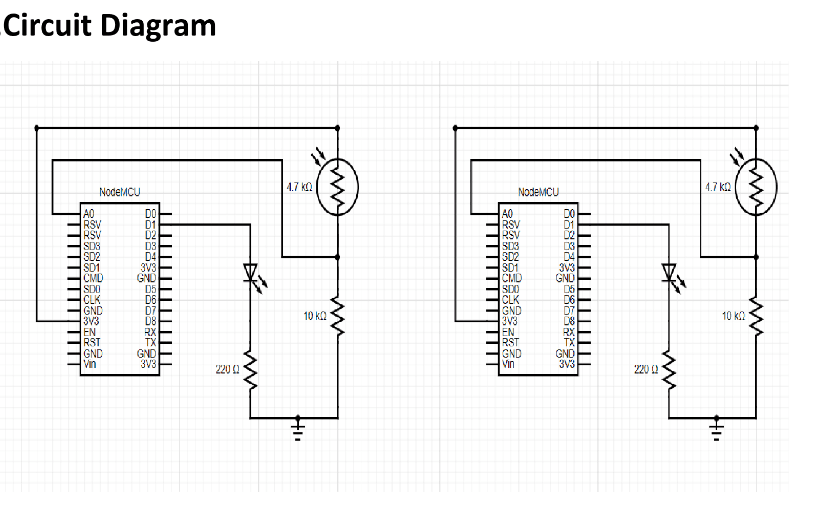

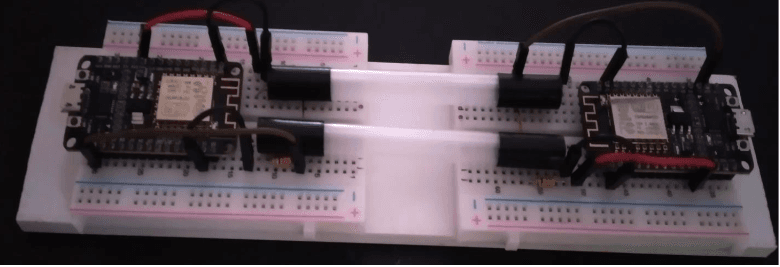

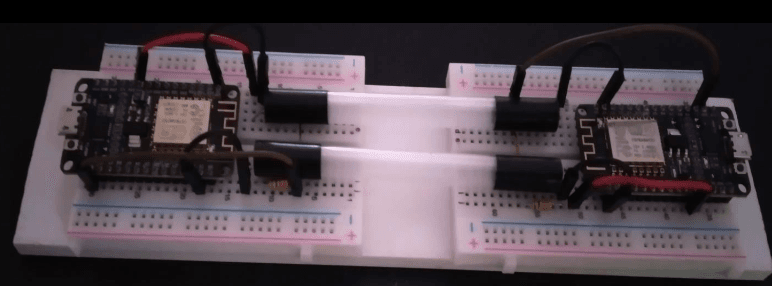

Hardware Setup
- Two NodeMCU (ESP8266) microcontrollers
- LED transmitter
- LDR (Light Dependent Resistor) receiver
- Serial connection to computers

Software Components
- Custom C# application for user interface
- Embedded code for NodeMCU
- Serial communication protocol

How It Works

The system operates through a series of precise steps:

Text Input: User enters text through the C# application
Data Conversion: Text is converted to binary format
Light Transmission: LED blinks in patterns representing binary data
Light Reception: LDR detects light intensity changes
Data Processing: Binary signals are converted back to text
Display: Received text appears on the recipient's application

Technical Implementation

Hardware Components

NodeMCU ESP8266: Acts as the controller for both transmission and reception
LED: Transmits data through light modulation
LDR: Converts received light signals into electrical signals
Supporting Components: Resistors, connecting wires, USB cables

Software Architecture

The software stack consists of:

User Interface Layer
- Windows Forms application
- Real-time message display
- Connection status monitoring
- Serial port configuration
Communication Layer
- Serial port management
- Data packaging and transmission
- Error handling and recovery
Embedded System Layer
- Binary data conversion
- Light signal modulation
- Signal detection and processing

Challenges and Solutions

1. Signal Reliability

Challenge: Ambient light interference
Solution: Implemented threshold-based detection with dynamic adjustment

2. Transmission Speed

Challenge: LDR response time limitations
Solution: Optimized timing parameters and implemented error checking

3. Data Integrity

Challenge: Signal loss during transmission
Solution: Added start/stop sequences and verification protocols

Future Enhancements

Higher Data Rates
- Integration of high-speed photodiodes
- Optimized signal processing algorithms
Extended Functionality
- File transfer capabilities
- Multi-device communication
- Enhanced error correction
Hardware Improvements
- Custom PCB design
- Integrated power management
- Compact form factor

Conclusion

This project demonstrates the practical implementation of Li-Fi technology for basic text communication. While current limitations exist, particularly in transmission speed and data types, the system successfully proves the concept of light-based data transmission. As component technology advances, particularly in photodetectors and LEDs, Li-Fi systems like this could become viable alternatives to traditional RF-based communication in specific use cases.
